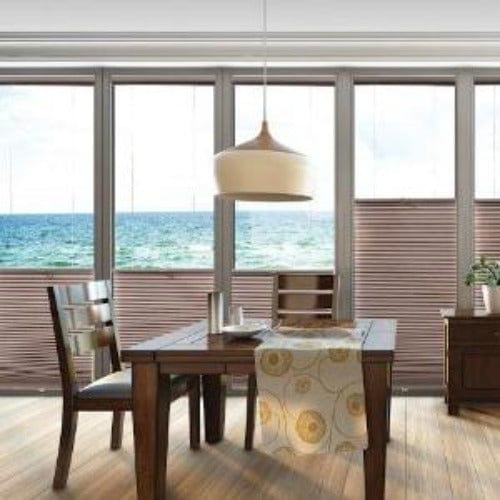

7/16 Double Cell Light Filtering Shades
Estimated Ship Date:
Compact 7/16" Cell Design: Small (.4375") honeycomb structure provides a sleek look while enhancing insulation and energy efficiency Flexible Operating Options: Available in both Clutch and Premium Cordless styles to suit your lifestyle and preference...
Read More
Starting at
$88.99
Loading builder...
Product Information
-
Compact 7/16" Cell Design: Small (.4375") honeycomb structure provides a sleek look while enhancing insulation and energy efficiency
-
Flexible Operating Options: Available in both Clutch and Premium Cordless styles to suit your lifestyle and preference
-

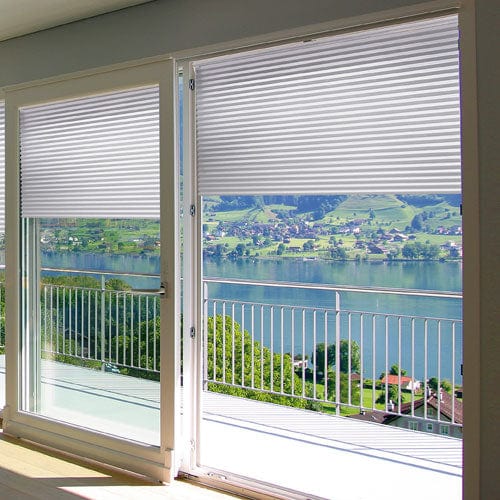

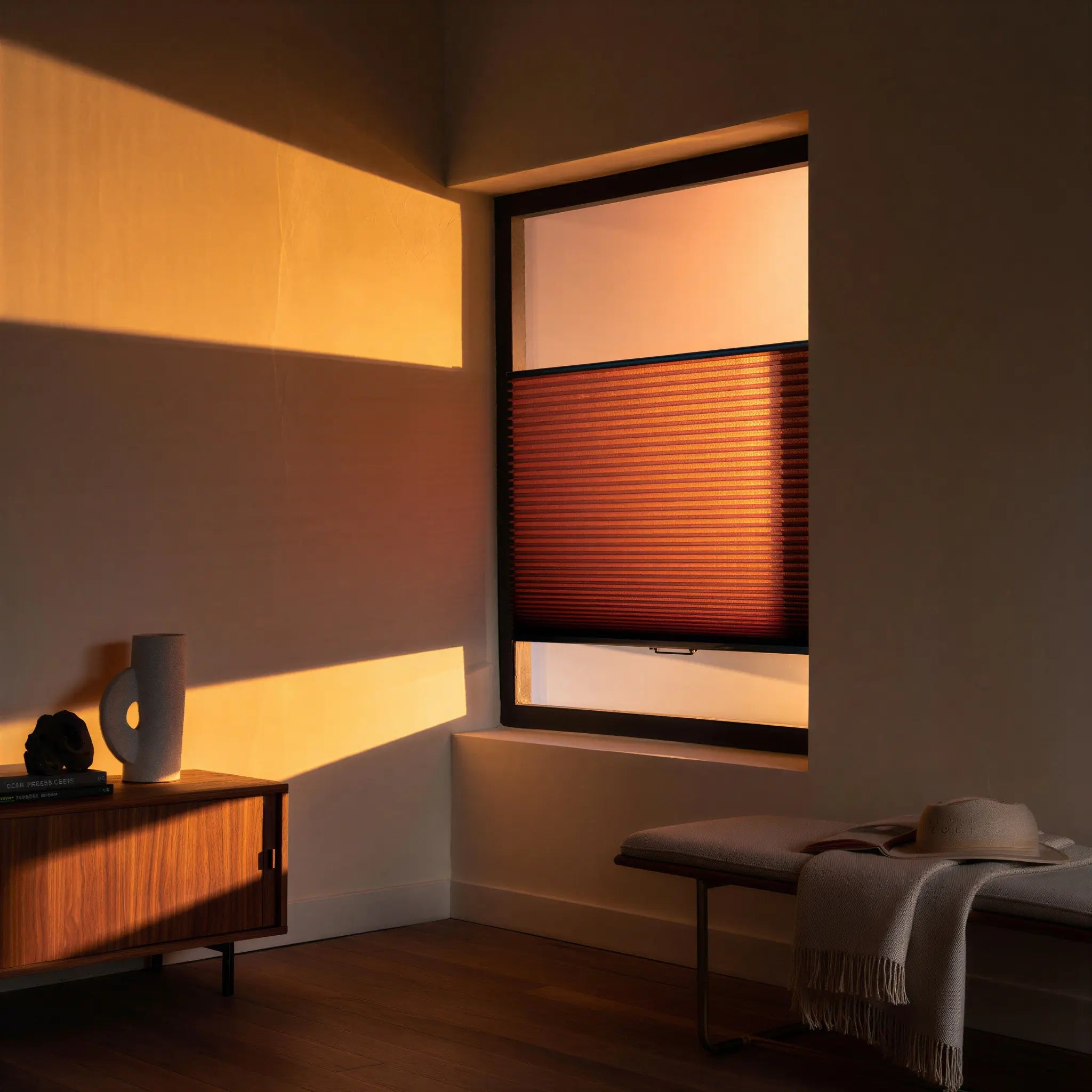

Top-Down/Bottom-Up Functionality: Choose Clutched or Cordless TDBU for versatile control of light and privacy from either direction
-
Default Clutched Cord Color: Clean white cord designed to blend seamlessly with most décor
-
Street-Facing White Backing: Delivers a uniform, polished appearance from the outside, boosting curb appeal
-
Space-Saving Fit: Engineered for a snug fit inside window frames, creating a clean, custom-built look
-
Easy Installation: Hidden brackets allow for quick, simple setup with no bulky hardware visible
- Cordless available in width up to 96". Wider shades must be Clutch.
- Minimum Depth Requirements
Product Specifications
Inside Mount Deduction
- Factory deduction of 1/8" may be applied by factory to account for roller mechanism.
- Factory deduction of 1/4" may be applied by factory to account for valance type.
Outside Mount
No deductions. Blind made to exact size ordered.
Minimum Depth Requirements for Secure Inside Mount
- No Valance (Standard Open Roller): Cordless (1 7/8"), Continuous Cord Loop (2 7/16"), Motorized (2 1/4")
- Cassette Valance with Fabric Insert: Cordless (1 9/16"), Continuous Cord Loop (1 9/16")
- Aluminum Fascia (3", White): Continuous Cord Loop (2 1/2"), Motorized (2 1/2")
Minimum Depth Requirements for Flush Inside Mount
- No Valance (Standard Open Roller): Cordless (2 1/4"), Continuous Cord Loop (3 1/14"), Motorized (2 15/16")
- Cassette Valance with Fabric Insert: Cordless (3 15/16"), Continuous Cord Loop (3 15/16")
- Aluminum Fascia (3", White): Continuous Cord Loop (3 1/8"), Motorized (3 1/8")
Valance Options
- 3" Aluminum Fascia in White (not available with cordless lift).
- Cassette Valance with matching fabric insert (not available with motorization).
Warranty
- Limited lifetime warranty on components
- 5-year warranty on motorization components
How to Measure & Install
Taking accurate measurements is straightforward. Let us walk you through the process!
To ensure a perfect fit, keep these essential pointers in mind:
- Always use a metal measuring tape for the best accuracy; fabric tapes can stretch and lead to errors.
- If your width measurement falls on a 1/16" or 1/32" mark, round down to the nearest 1/8".
- If your height measurement lands on a 1/16" or 1/32" increment, round up to the closest 1/8".
- Always consult the Product Specifications for the product you are measuring for. If you have questions, we will be happy to help!
Instructions for Inside Mounted Cellular Shades
Depth Requirements: For an inside mount, you'll need to make sure the window frame is deep enough to accommodate the cellular shade. Refer to the Product Specifications for minimum depths depending on your chosen valance option.
Measuring the width
- The width measurement is found by measuring the inside of the window frame in three locations: the top, middle, and bottom.
- Choose the smallest of these measurements.
- If you get a 1/16" or 1/32" increment, round down to the nearest 1/8".
- That's your width for your cellular shades.
Measuring the height
- The height measurement is found by measuring the inside of the window frame in three locations: the left, center, and right.
- Choose the largest of these measurements.
- If you get a 1/16" or 1/32" increment, round up to the nearest 1/8".
- That's your height for your cellular shades.
Do not make any deductions. The factory will make a small deduction to ensure the shade fits inside your window frame. If you would like more light coverage, an outside mount will minimize any potential light gaps.
Instructions for Outside Mounted Cellular Shades
An outside mount sits outside of the window and the window frame. Because it is meant to cover the entire space of the window, you'll need to make some additions to the measurements to make sure you order the right size. Please follow the instructions below.
Measuring the width
- Measure the width of the area you want the shade to cover across the top.
- We suggest adding at least 4 inches to the width (2 inches per side) to minimize light gaps.
- That's your width for your cellular shades.
Measuring the height
- Measure the height from where you want the headrail to sit down to the window sill or desired length.
- We suggest adding at least 4 inches to the height (2 inches top, 2 inches bottom).
- That's your height for your cellular shades.
For detailed step-by-step instructions with videos, visit our Measuring Guide Hub.
